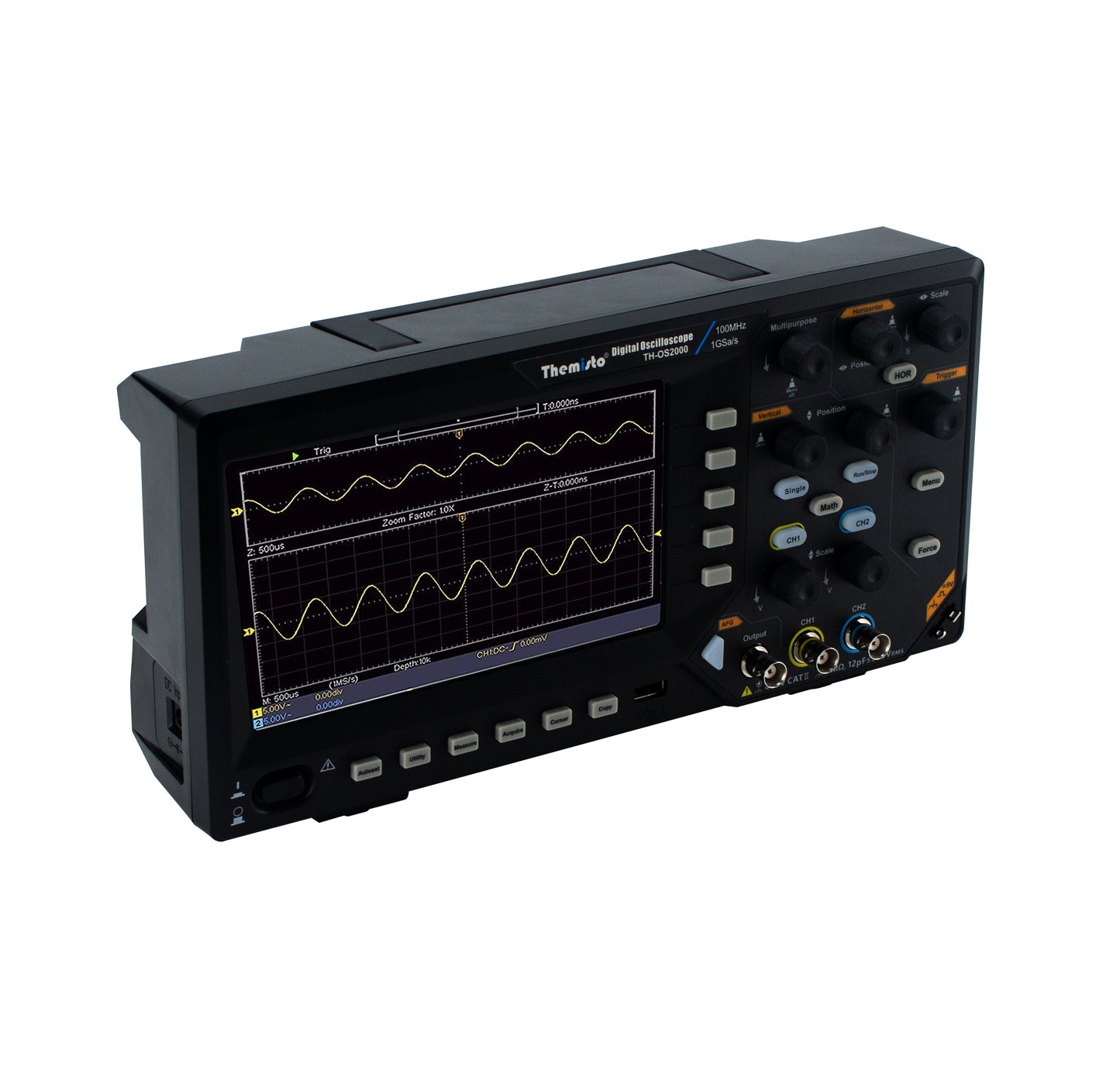

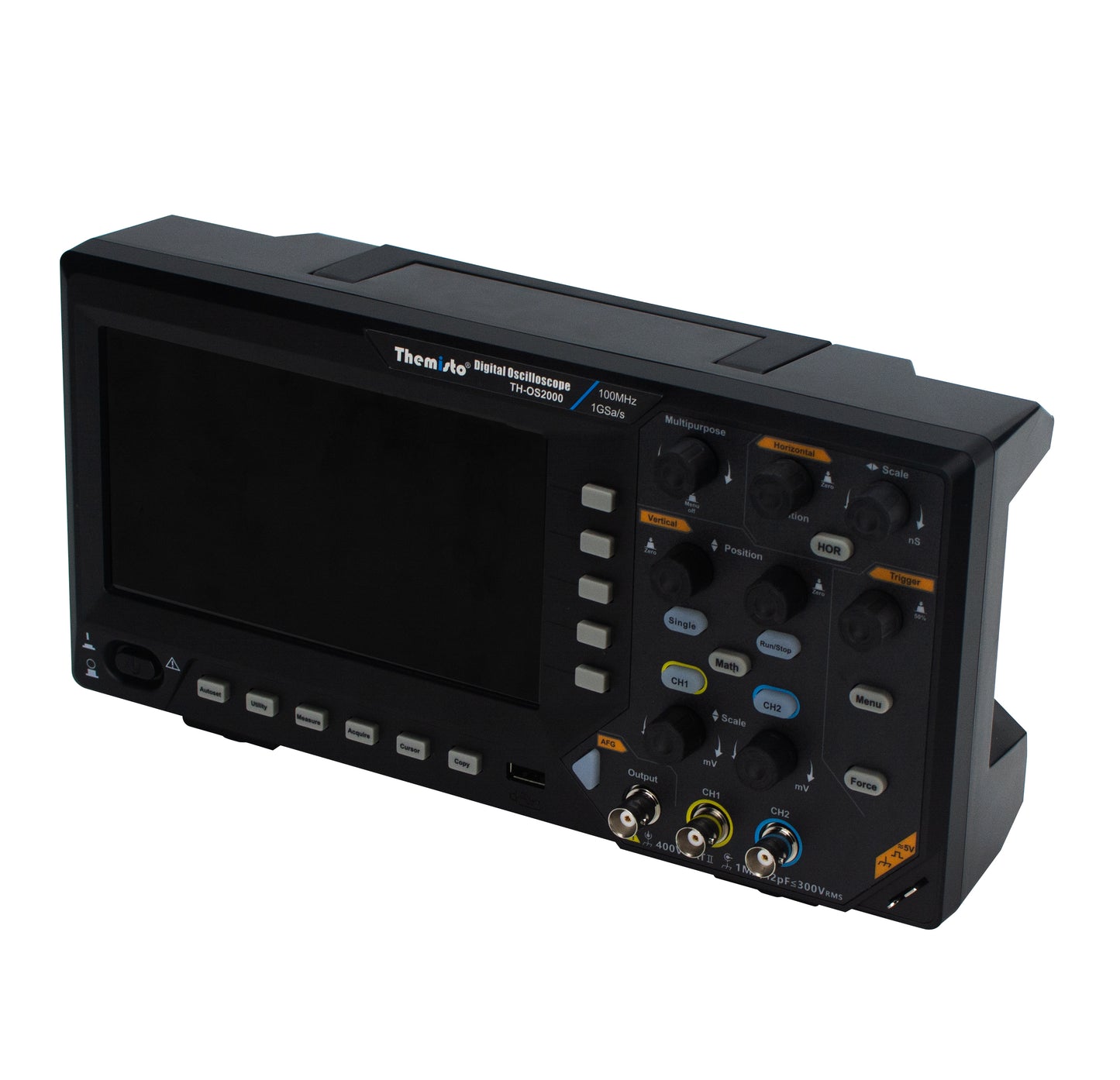

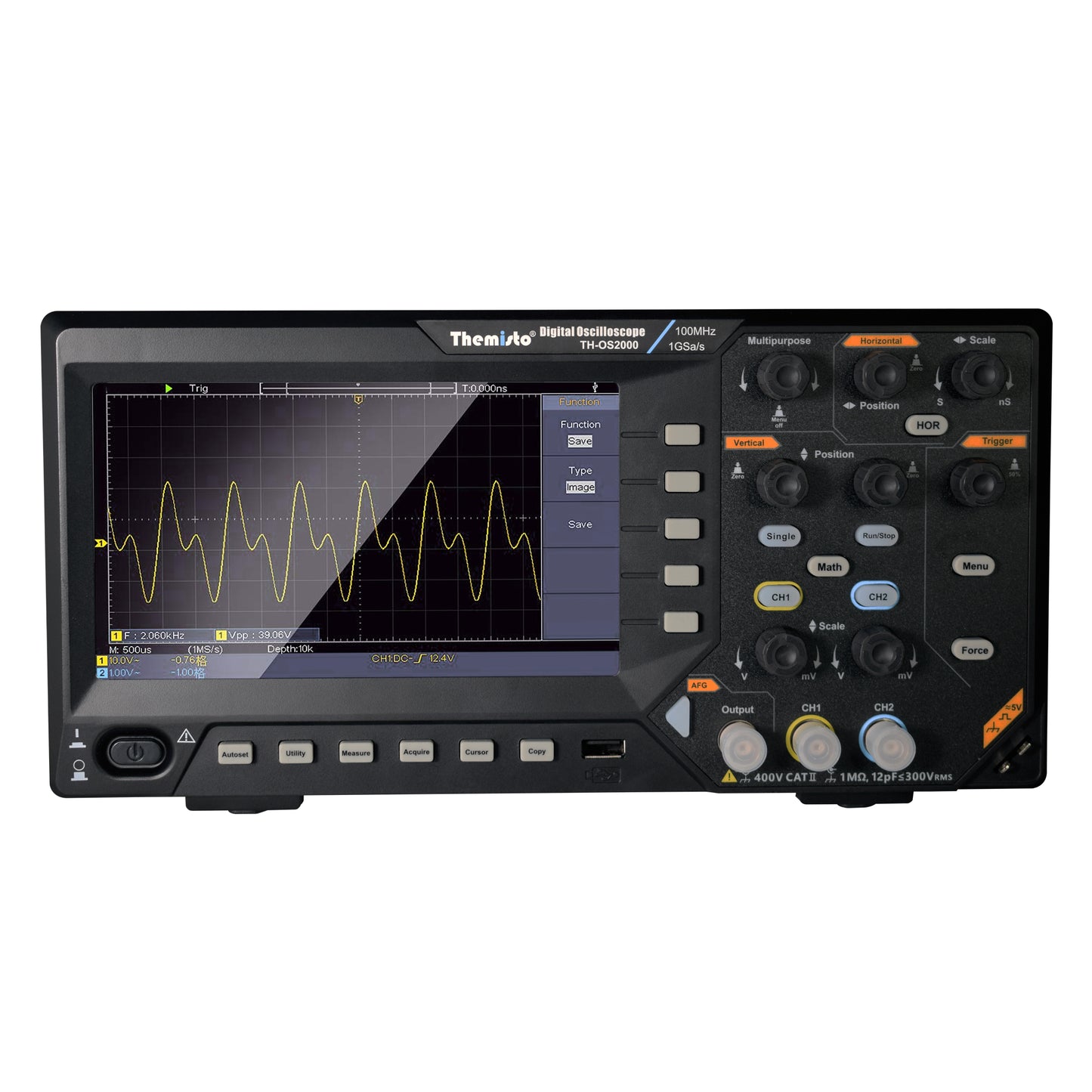

Themisto TH-OS2000 2-Channel Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate with Function Generator

Themisto TH-OS2000 2-Channel Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate with Function Generator

Regular price Rs. 14,999.00
Regular price Rs. 29,999.00 Sale price Rs. 14,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Technical specifications:

  • Bandwidth : 100MHz
  • Channel : 2 channels
  • Sampling Rate : 1GSa/s
  • Mode : Normal, Peak detect, Averaging
  • Input coupling : DC, AC , Ground
  • Input impedance : 1 MΩ±2%, in parallel with 20 pF±5 pF
  • Input coupling : 1X,10X,100X,1000X
  • Max. input voltage : 400V (DC+AC, PK - PK)
  • Channel –channel isolation : 50Hz: 100 : 1 10MHz: 40 : 1
  • Time delay between channel(typical) : 150ps
  • Bandwidth limit : 20 MHz, full bandwidth
  • Sampling rate range : 0.5 S/s~500 MS/s
  • Interpolation : (Sinx)/x
  • Scanning speed (S/div) : 2 ns/div – 1000 s/div, step by 1 – 2 - 5
  • Sampling rate / relay time Accuracy : ±100ppm
  • Interval(△T) accuracy (DC - 100MHz) : Single:±(1 interval me+100 ppm×reading+0.6 ns); Average>16:±(1 interval +100 ppm×reading+0.4 ns)
  • Vertical Resolution (A/D) : 8 bits (2 channels simultaneously)
  • Sensitivity : 20mV/div~5 V/div
  • Displacement : ±2 V (20 mV/div – 200 mV/div) ±50 V (500 mV/div – 5 V/div)
  • Analog bandwidth : 100MHz
  • Single bandwidth : Full bandwidth
  • Low Frequency : ≥10 Hz (at input, AC coupling, -3 dB)
  • Rise Time (at input, typical) : ≤ 3.18 ns
  • DC gain accuracy : ±3%
  • DC accuracy (average) : Delta Volts between any two averages of ≥16 waveforms acquired with the same scope setup and ambient conditions (△V): ±(3% reading + 0.05 div)
  • Cursor : △V, △T, △T&△V between cursors, auto cursor
  • Automatic : Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B , Delay A→B , Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, - PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area.
  • Waveform Math : +, -, *, / ,FFT
  • Waveform storage : 16 waveforms

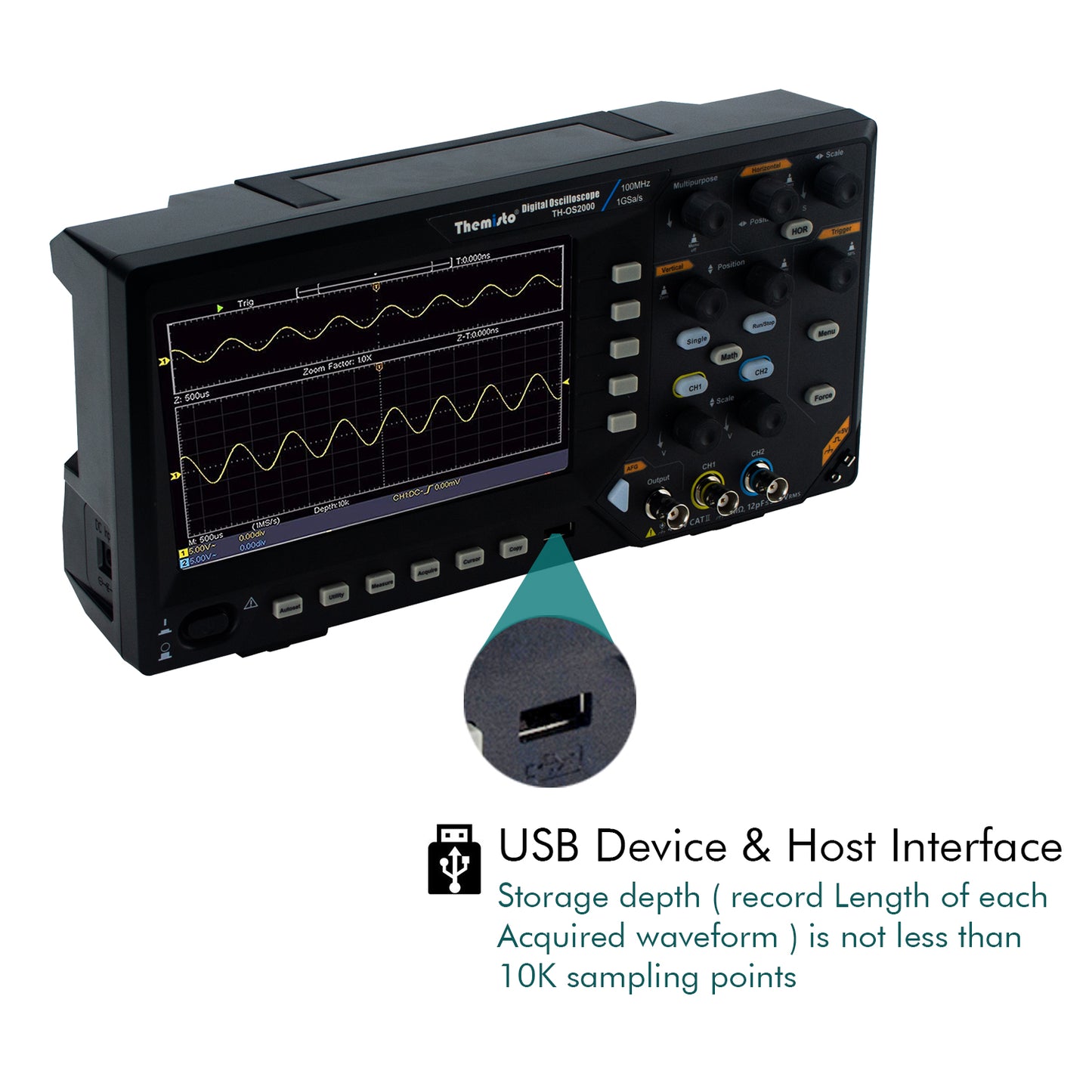

  • Communication Port : USB 2.0 (USB storage)
  • Counter : Support
  • Trigger displacement : According to Record length and time base
  • Trigger Holdoff range : 100 ns – 10 s
  • 50% level setting (typical) : Input signal frequency ≥ 50 Hz
  • Edge trigger : slope : Rising, Falling
  • Video Trigger : Modulation : Support standard NTSC, PAL and SECAM broadcast systems
  • Video Trigger : Line number range : 1-525 (NTSC) and 1-625 (PAL/SECAM)

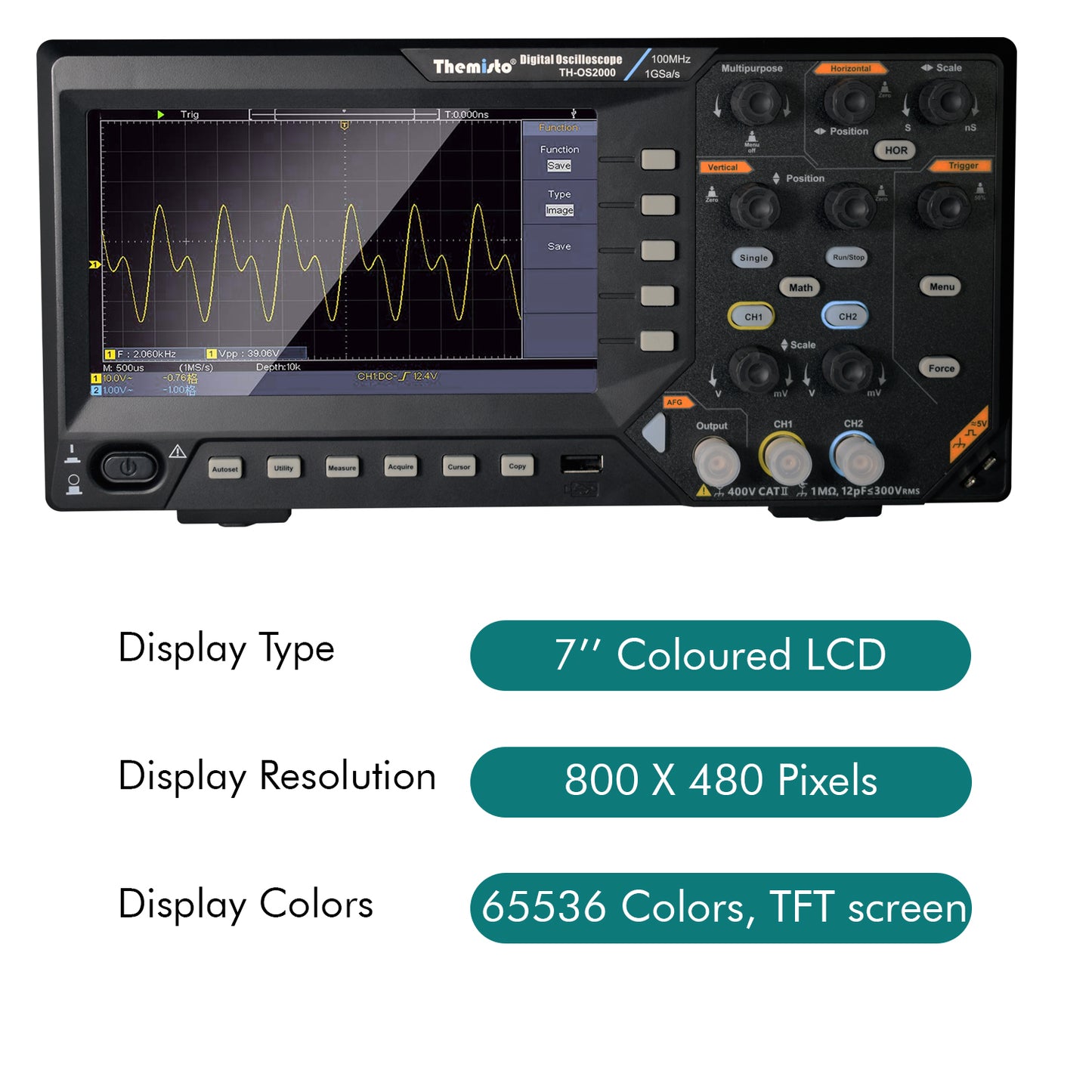

DISPLAY :

  • Display Type : 7" Colored LCD (Liquid Crystal Display)
  • Display Resolution : 800 (Horizontal) × 480 (Vertical) Pixels
  • Display Colors : 65536 colors, TFT screen

OUTPUT OF THE PROBE COMPENSATOR:

  • Output Voltage (Typical) : About 5 V, with the Peak-to-Peak voltage ≥1 MΩ.
  • Frequency (Typical) : Square wave of 1 KHz

ENVIRONMENT :

  • Temperature : Working temperature: 0 ℃ - 40 ℃, Storage temperature: -20 ℃ - 60 ℃
  • Relative Humidity : ≤ 90%
  • Height Operating : operating : 3,000 m , Non-operating: 15,000 m
  • Cooling Method : Natural cooling

MECHANICAL SPECIFICATIONS:

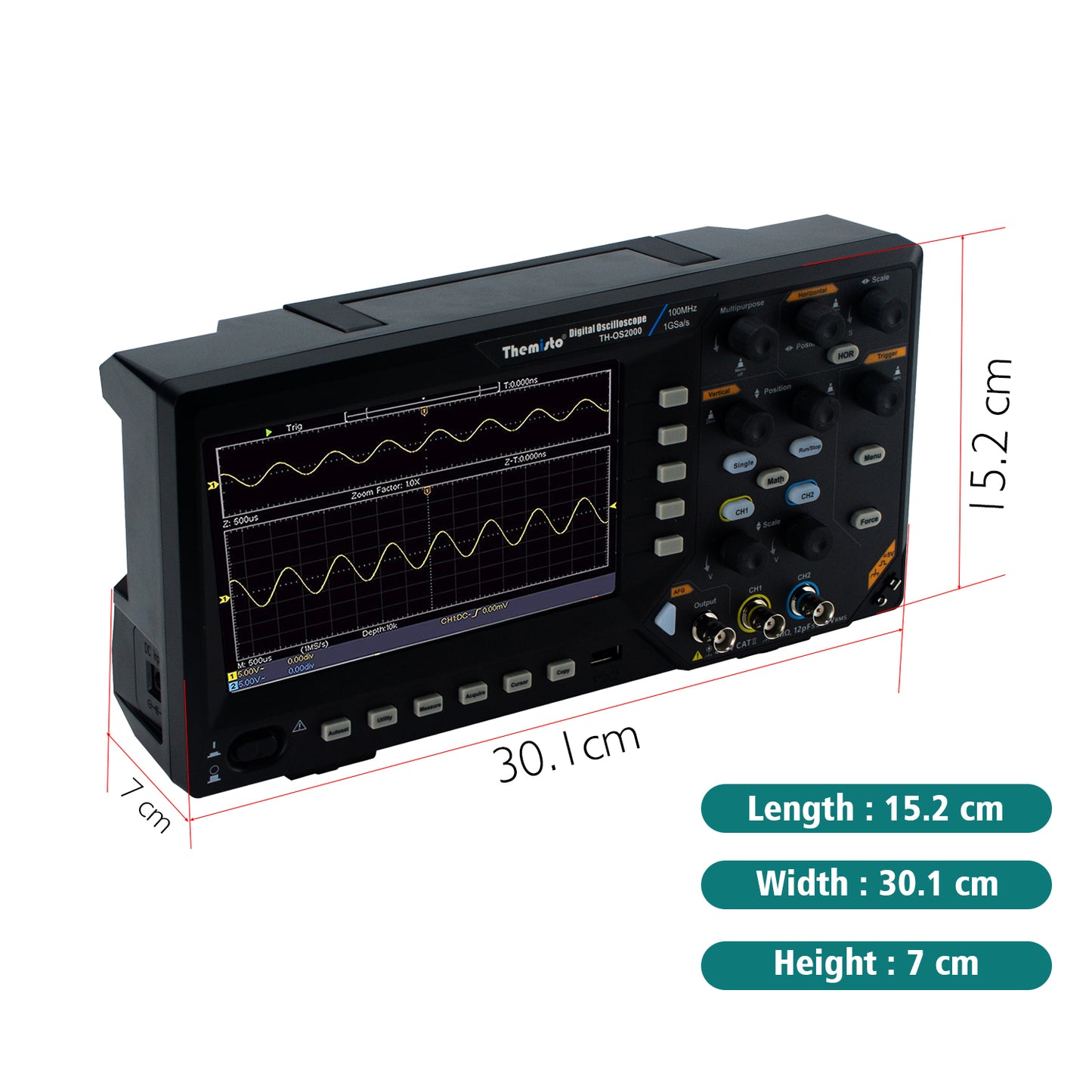

  • Dimension : 301 mm× 152 mm×70 mm (L*H*W)
  • Weight : About 1.1 kg
