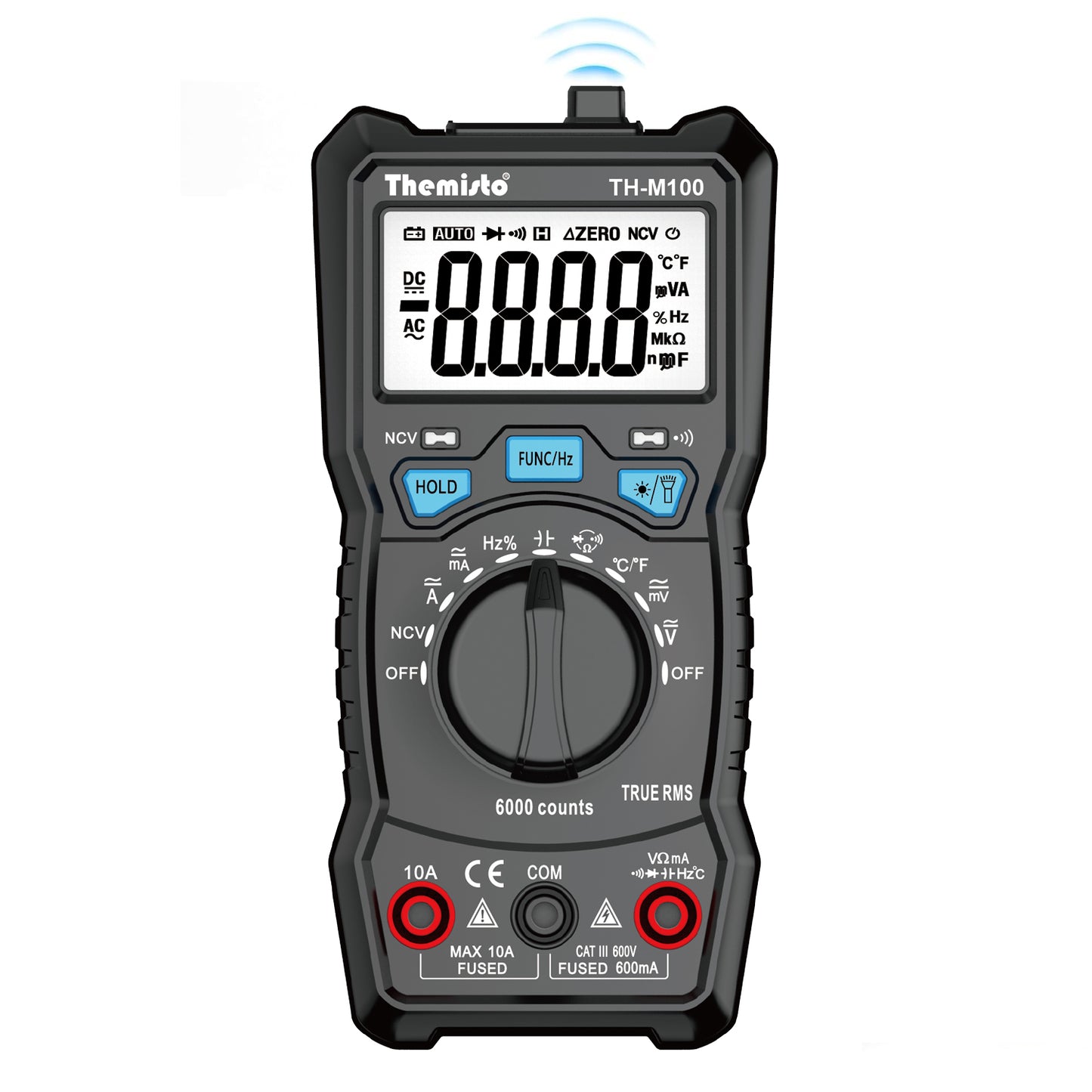

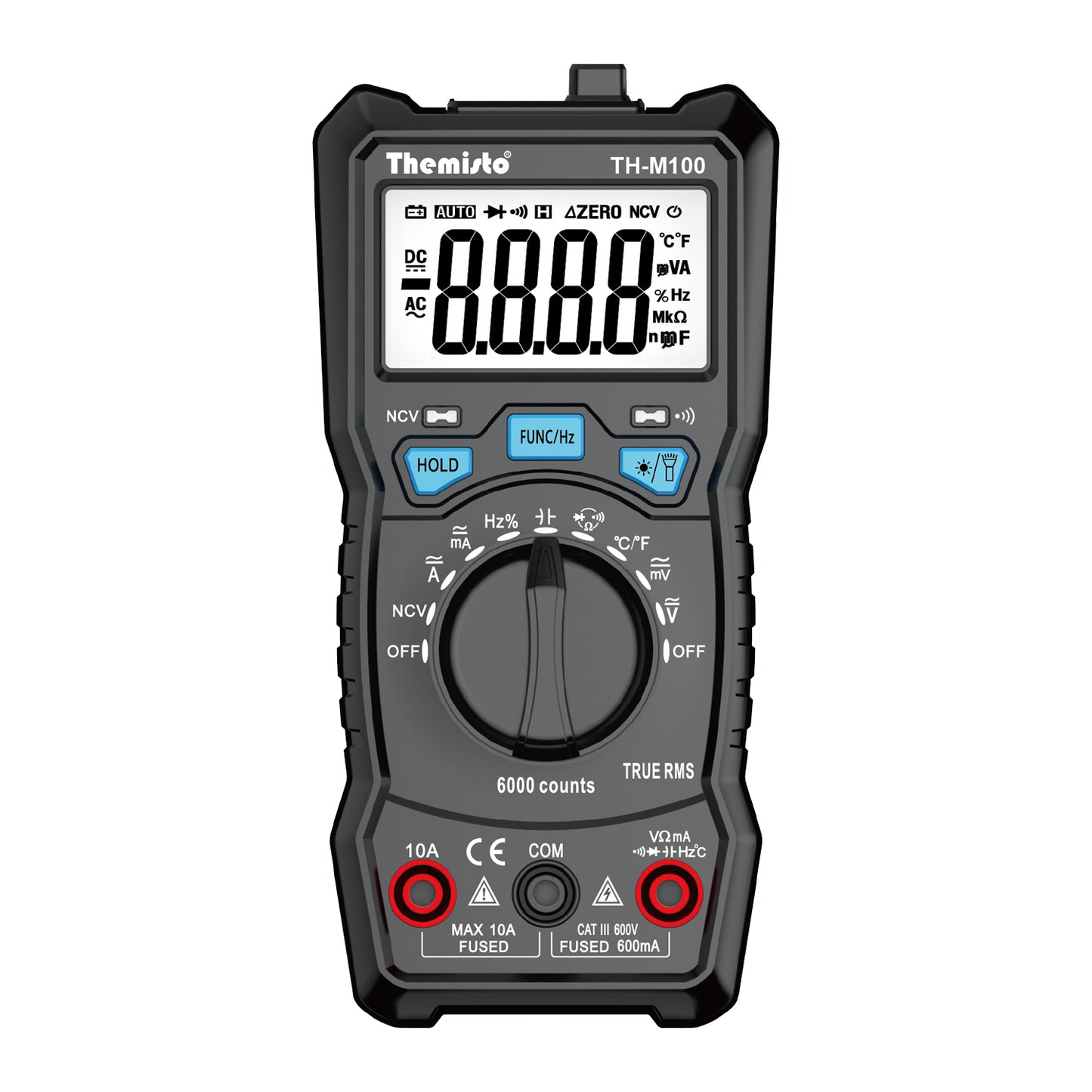

Multimeter is designed to safely and accurately troubleshoot a variety of automotive and household electrical problems, it is provided with a LCD display for clear reading, it can be used to measure DC/AC voltage/current ,resistance, capacitance, frequency, duty cycle, diode, continuity and live wire.
Features:
Max display value:6000 Counts Auto range
True RMS

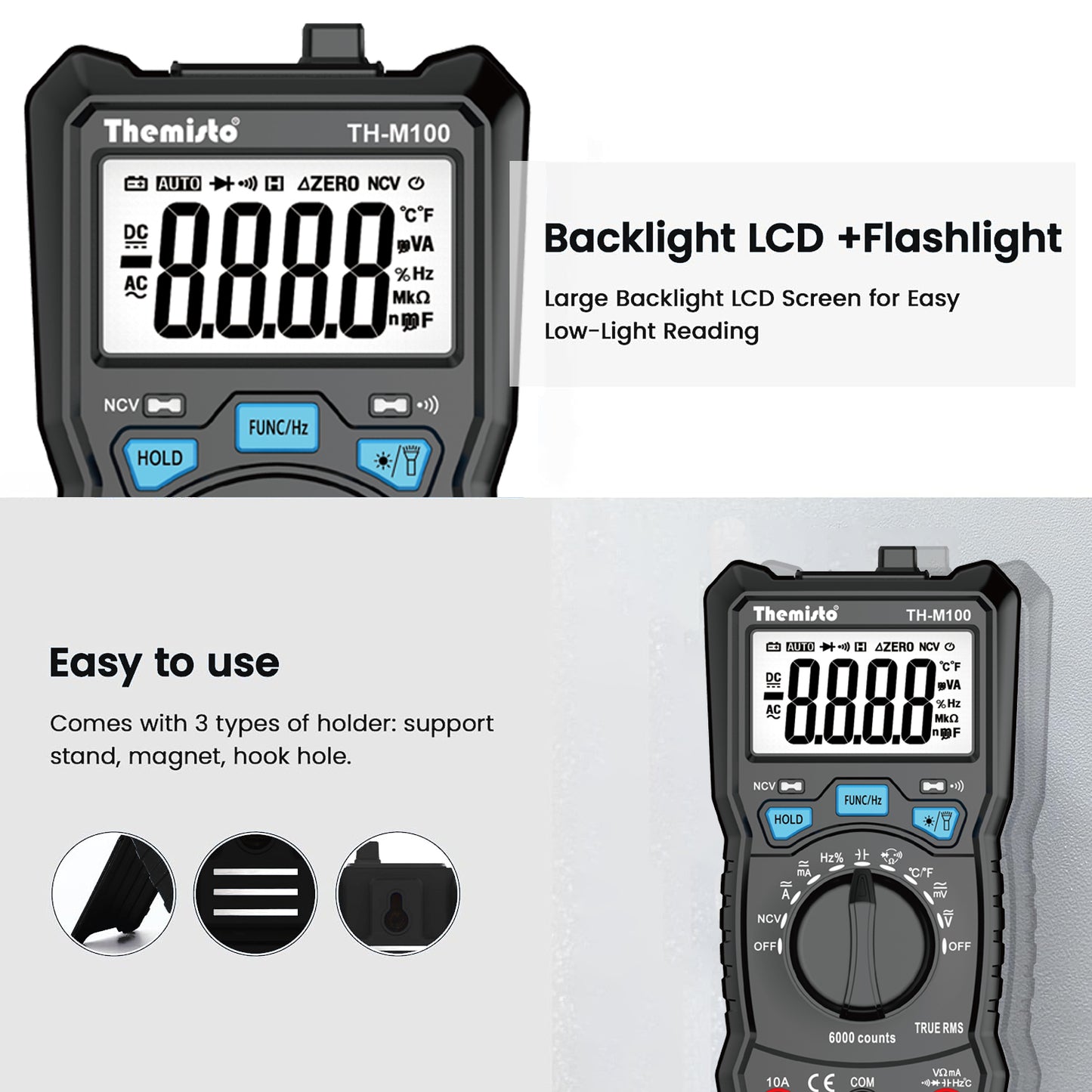

LCD display with back light for clear reading.
Can measures AC/DC Current, AC/DC voltage, resistance, duty cycle, diode, continuity and live wire.
Includes data hold and low battery indication functions.
Auto power off in 15mins if there's no operation.
Built-in LED flashlight, convenient to use at night or dark environment.
With overload protection on all ranges.
Equipped with a back bracket for supporting multi meter ,and also can collect test probe for your convenience.
Protected by rubber for drop protection.
Great for troubleshooting automotive and household electrical problems.
Specifications:
Basic function:
Maximum Display:6000 Counts
Range Control: Auto Range
DC Voltage:600mV/6V/60V/600V
AC Votage:600mV/6V/60V/600V
DC Current:60mA/600mV 10A
AC Current:60mA/600mV 10A
Resistance(ohm):600/6K/60K/600K/6M/60M
Frequency : 9.999Hz/99.99Hz/999.9Hz/99.99KHz/999.9KHz/9.999MHz
Capacitance: 60nF/600nF/6uF 60uF/600uF/6mF/100mF
Specific function:
NCV:90-100V AC Sound and light alarm
Backlight: Yes
Flashlight:3mm LED
Auto power-off: No operation 15 minutes auto power-off
