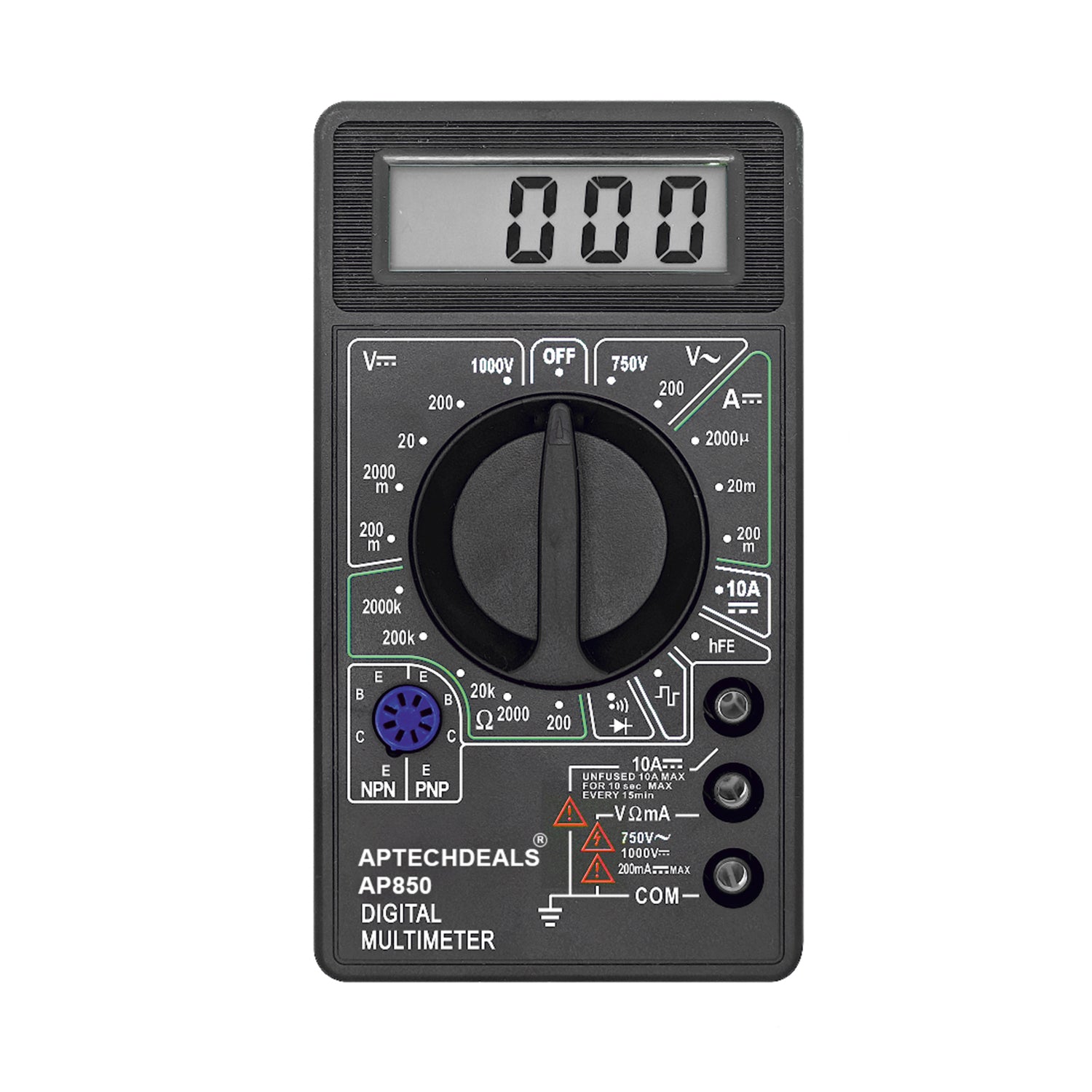

APTECHDEALS AP-850 AC/DC Voltage| DC Current | Digital Multimeter (Black 2000 Counts)

Brand: APTECHDEALS
Model: AP-850
Type: Digital
Display Type: LCD
Color: Black
Material: Plastic

Primary Functions:

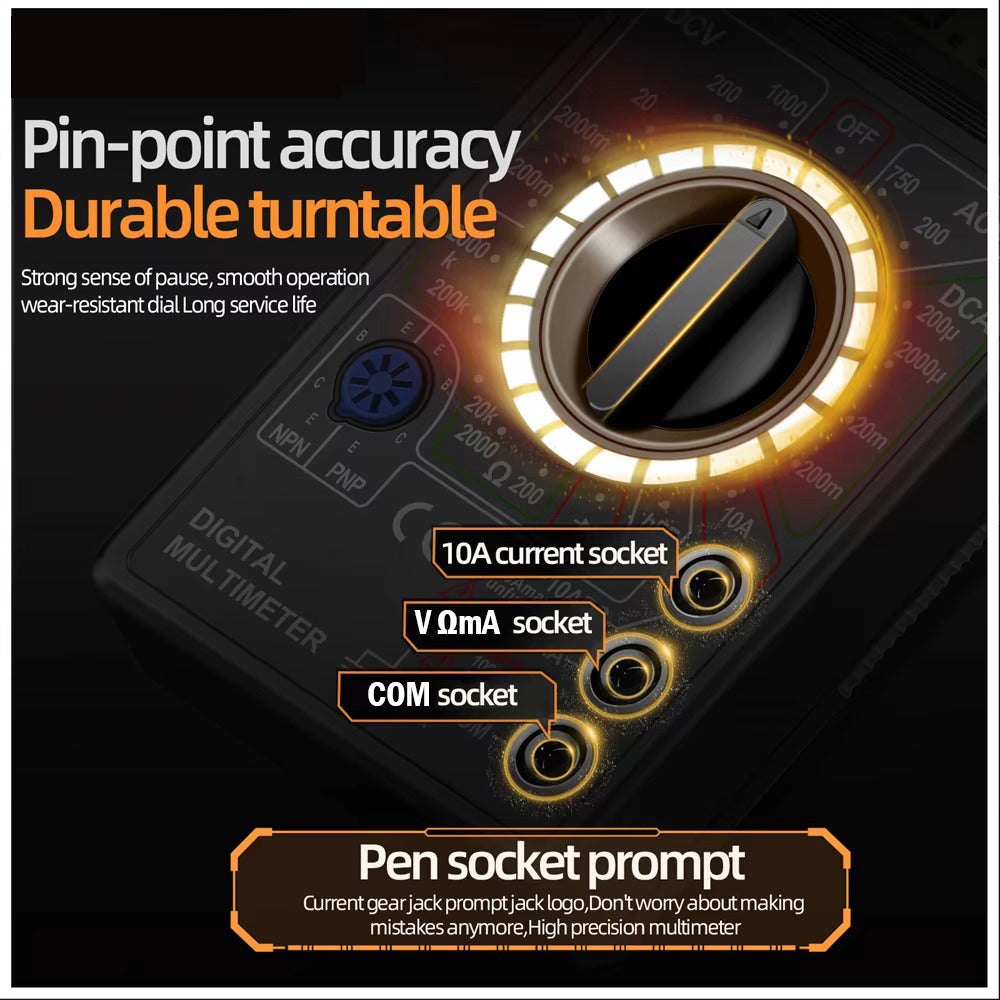

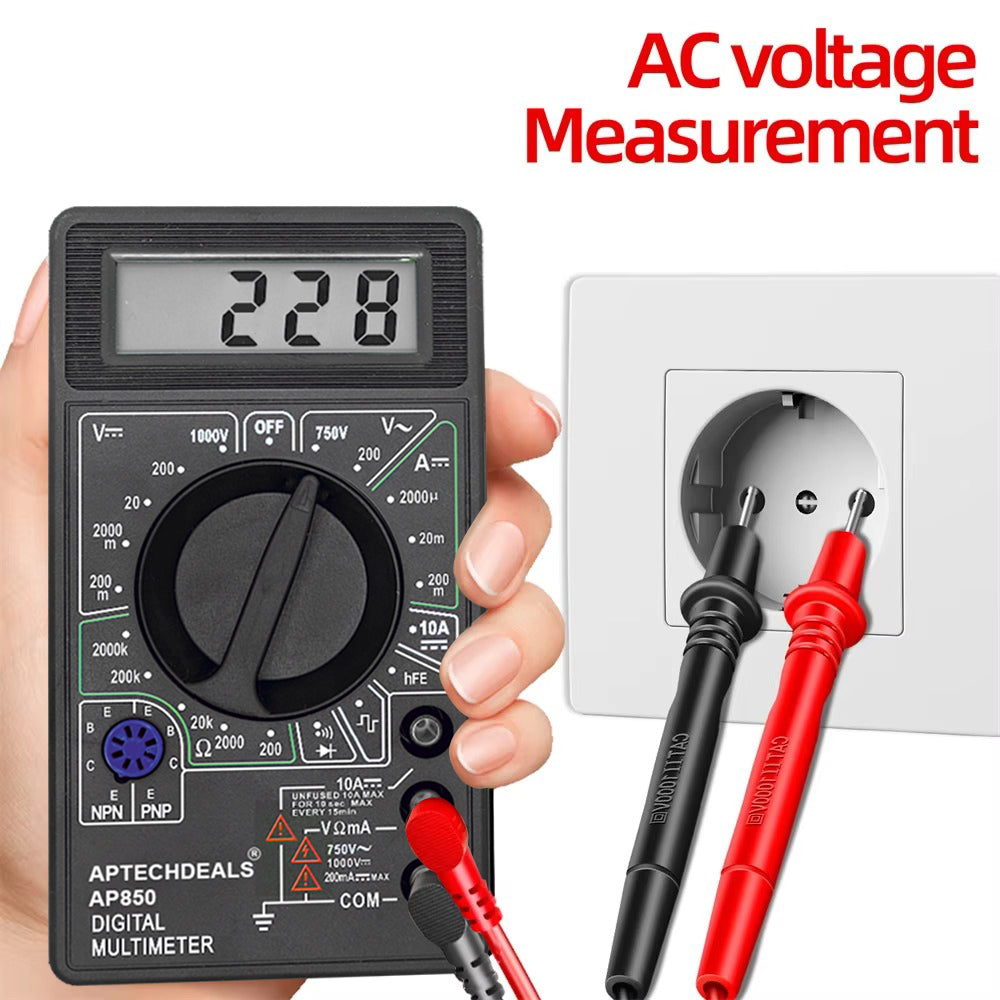

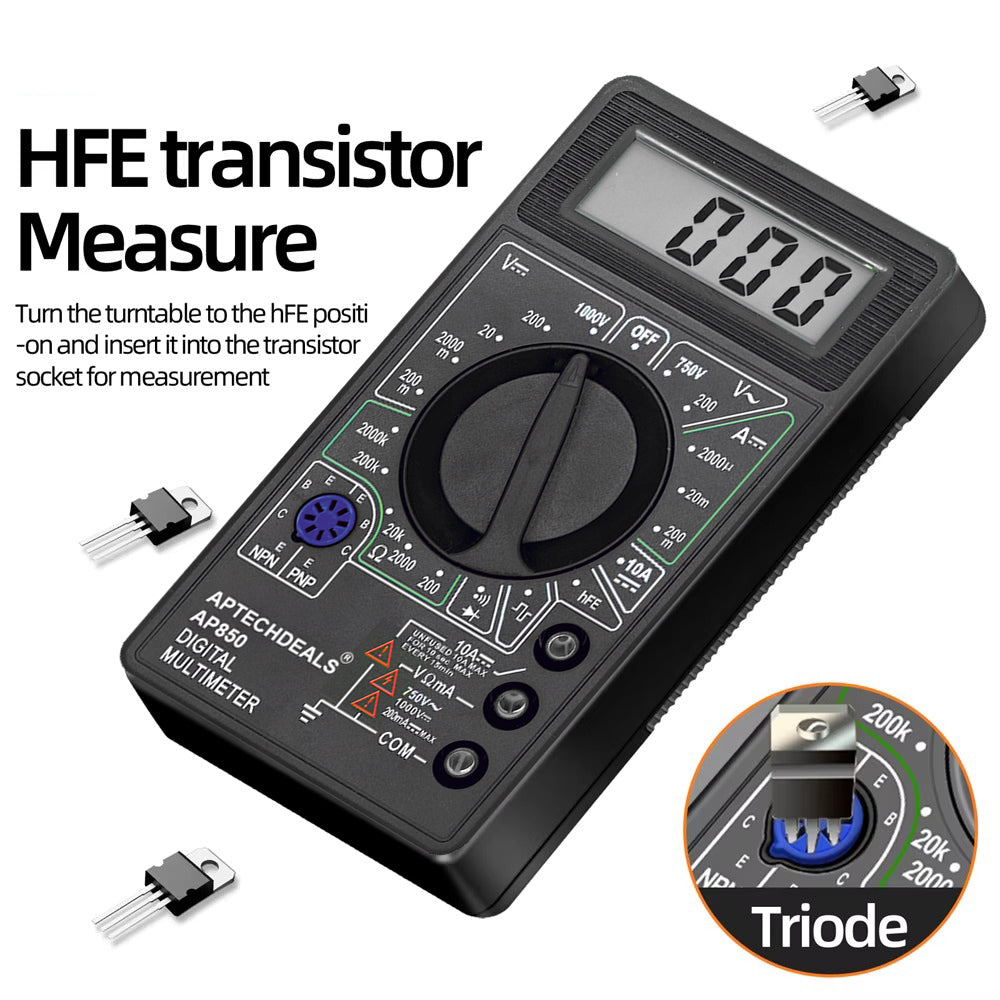

The square wave output has a frequency of 50 Hz and a voltage of approximately 3 V peak-to-peak (Vp-p). The output jacks used are "V Ω mA" and "COM". When testing the current gain (hFE) of a transistor, turn the switch to the hFE position and insert the transistor into the 8-hole socket according to its type and pin configuration. When measuring DC voltage, AC voltage, DC current (up to 200 mA), resistance, diodes, continuity (buzzer), or batteries, connect the red test lead to the "V Ω mA" jack and the black test lead to the "COM" jack. When measuring current above 200 mA, connect the red test lead to the "10A" (or "10A DC") jack, and the black test lead to the "COM" jack.

Number of Counts: 2000
Brand Color: Black
Audible Continuity Test: Yes

Display Size: 47.30 × 14.90 mm
Data Freeze: No
Autoranging: No
Reading Storage: No
Backlight: No
PC Connectivity: No
Net Quantity: 1

Dimensions

Width: 70 mm
Height: 125 mm

Depth: 25 mm

Weight: 68 g

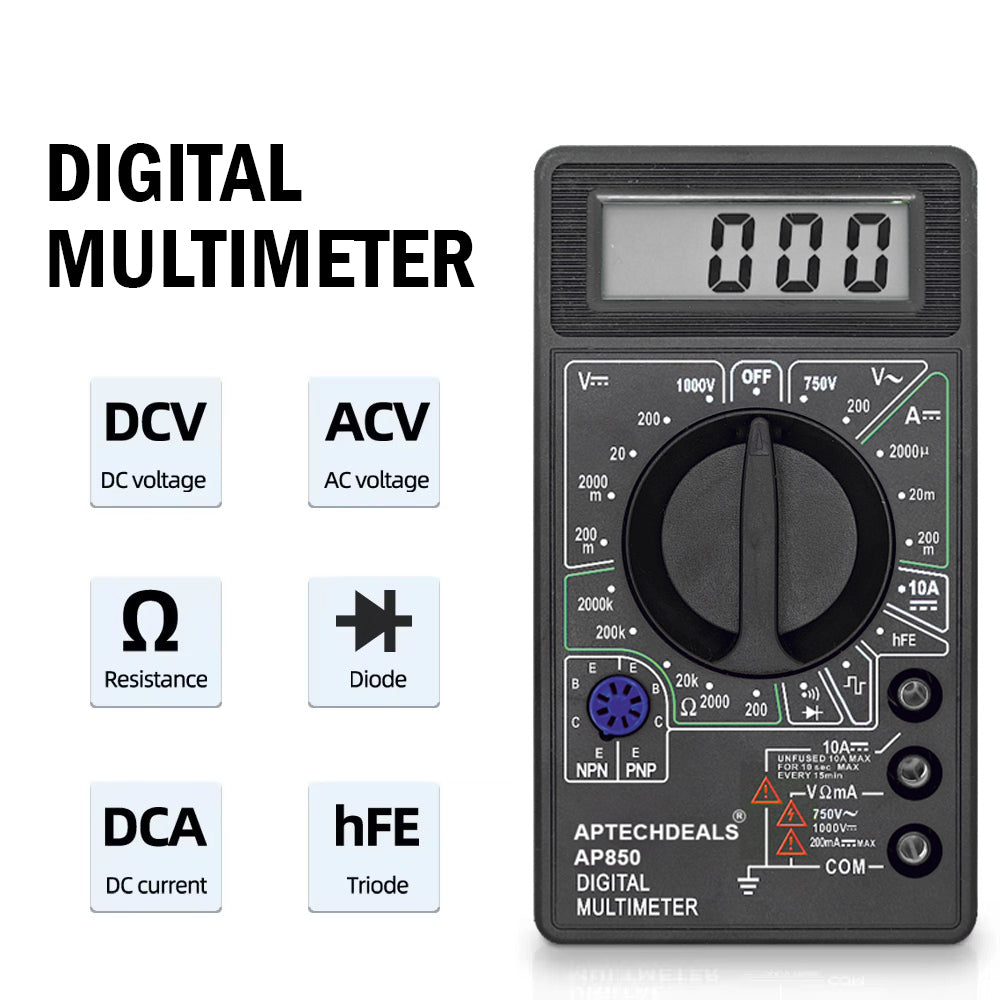

Functions

AC Current: NA

DC Current: 2000uA, 20mV, 200mA, 10A

AC Voltage: 200V, 750V

DC Voltage: 200mV, 2000mV, 20V, 200V, 1000V

Resistance: 200 ohm, 2000 ohm, 20k ohm, 200k ohm, 2000k ohm

Capacitance: NA

Other Functions: Diode

Battery Type: AAA

Number of Batteries : 2
